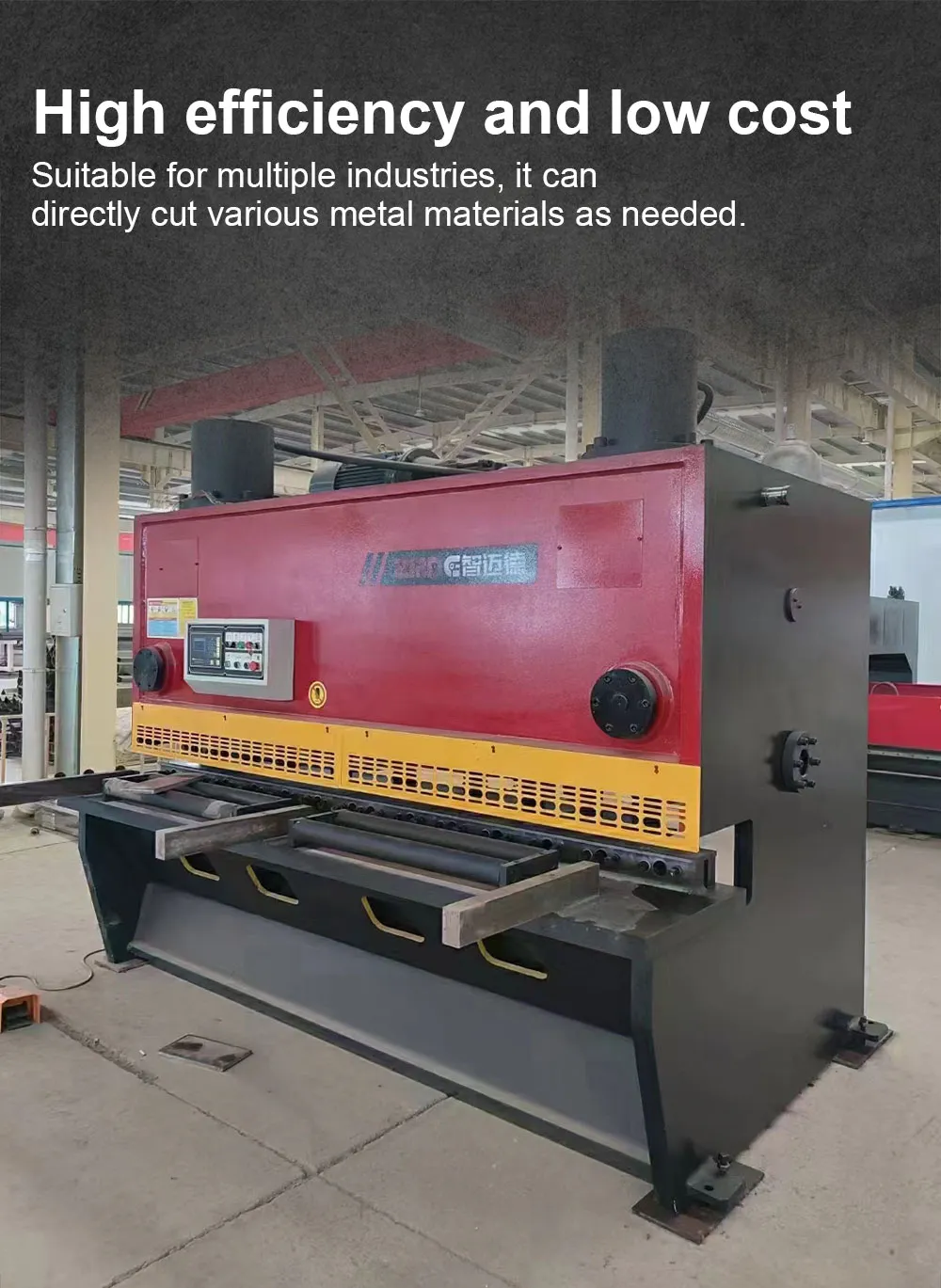

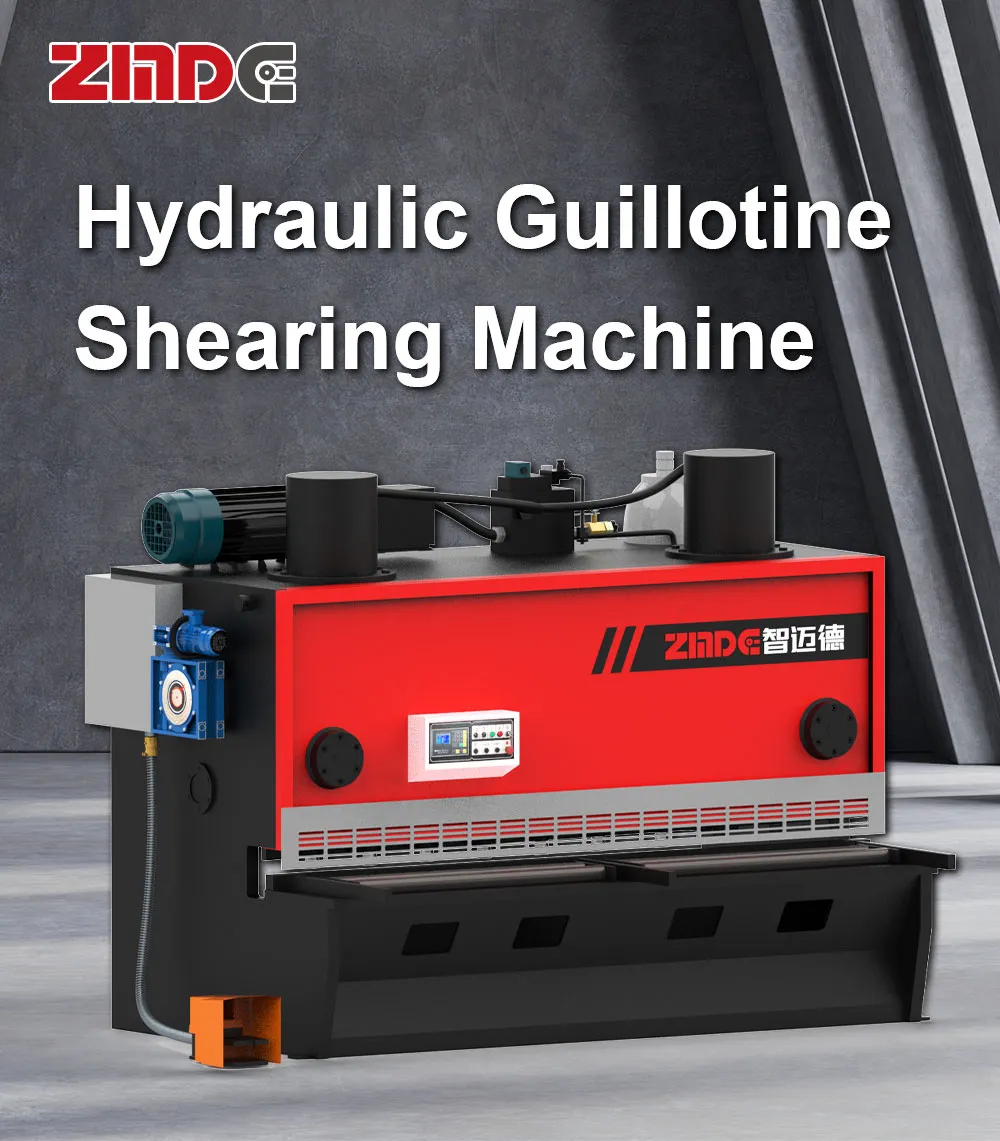

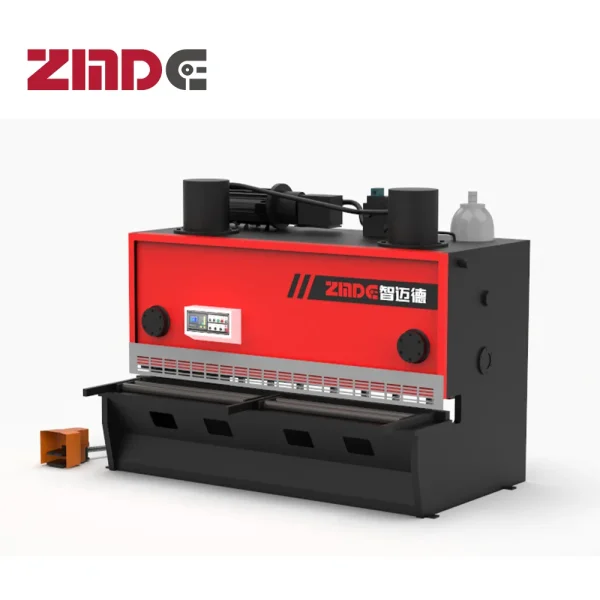

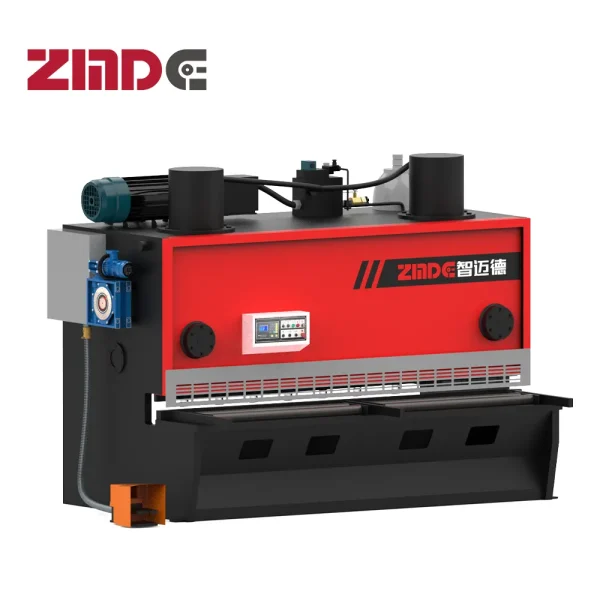

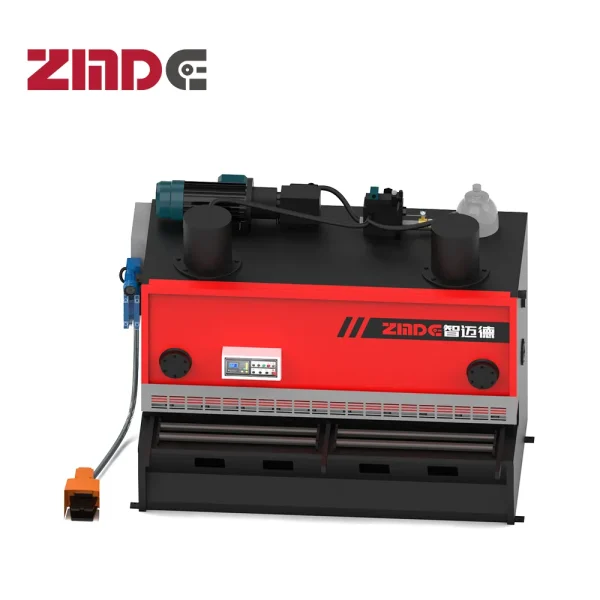

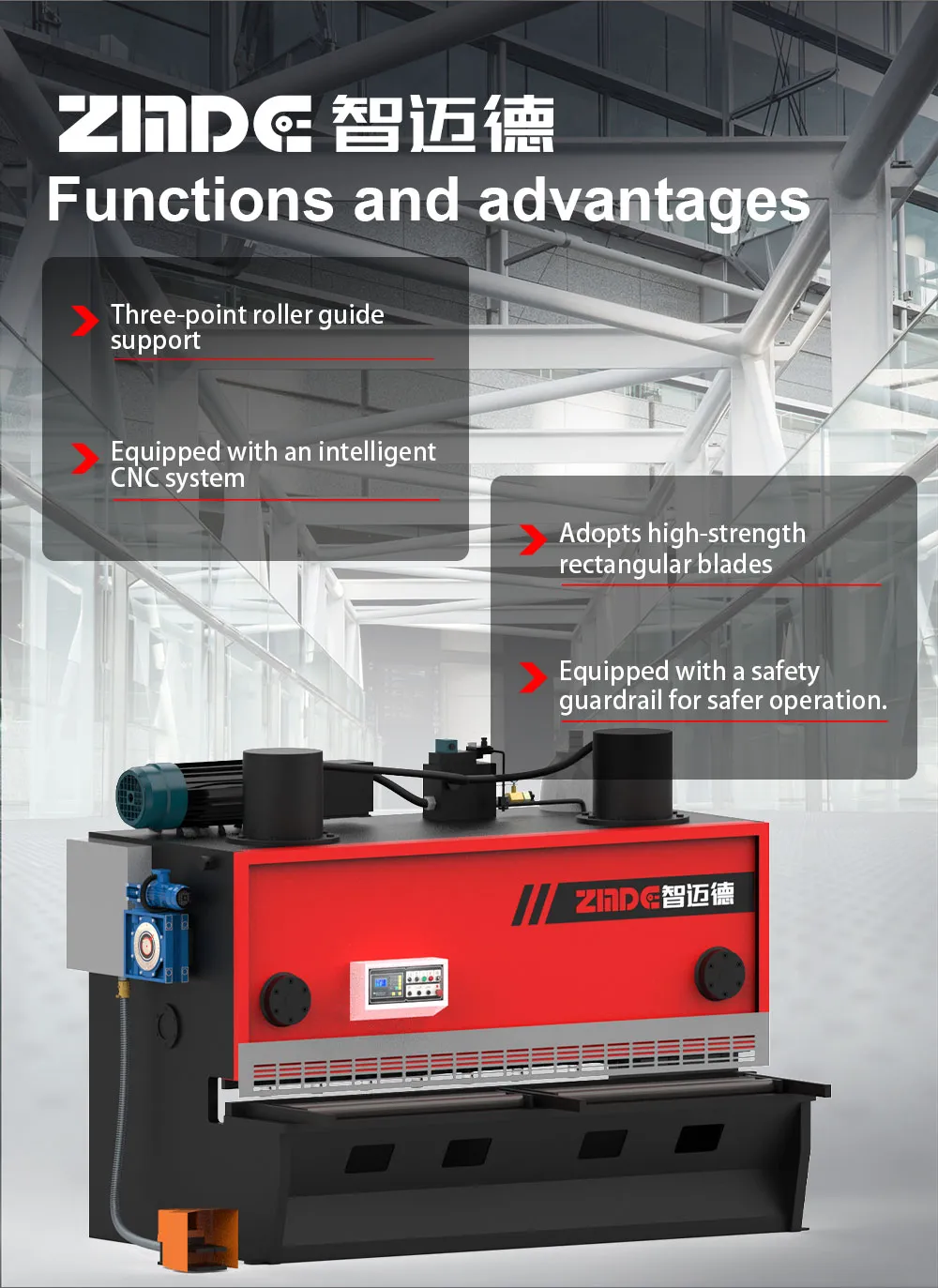

ZMDE Hydraulic Guillotine Shearing Machine For Steel Structure Fabricaion HGS16-2500
ZMDE Hydraulic Guillotine Shearing Machine For Steel Structure Fabricaion and Coil to Steel Plates.
Description

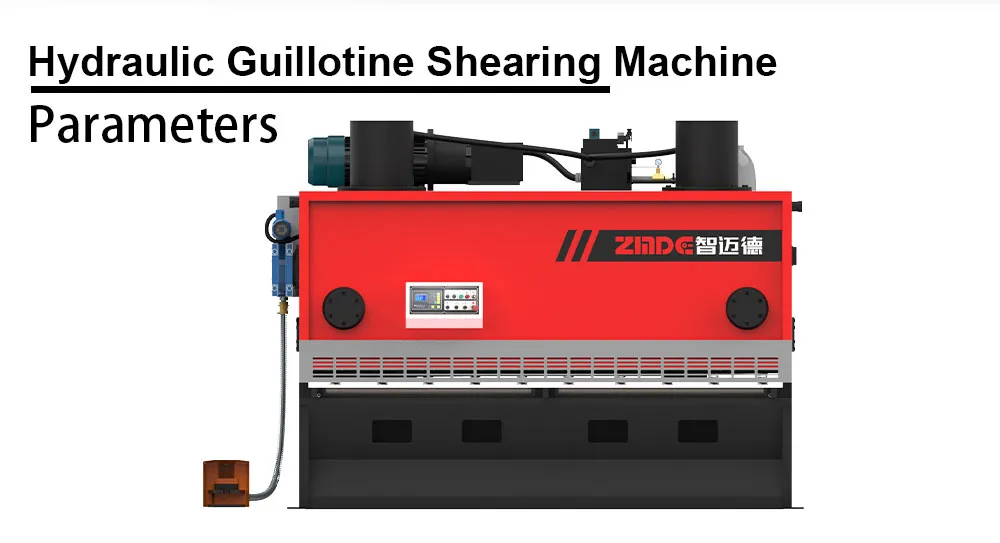

Additional information
| Maximum Shearable Thickness | 16 mm |
|---|---|
| Maximum Shearable Width | 2500 mm |
| Material Strength | σb ≤ 450 N/mm² |
| Stroke Frequency | 8–12 times/min |
| Shearing Angle | 0.5°–2.5° |
| Back Gauge Range | 20–800 mm |
| Blade Length | 2600 mm |
| Main Motor Power | 22 kW |
| Gear Pump Flow Rate | 50 L/min |
| Power Supply | AC 380V, 50Hz, 3-phase |
